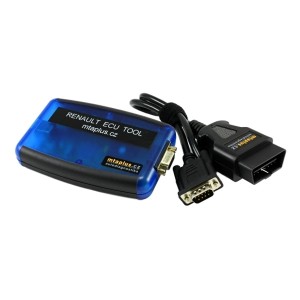

Renault Tool

Servisní zařízení slouží k programování jednotek vozidel Renault - čtení, zápis EEprom a Flash čtení immo kódu, virgin, spárování karty, změna VIN, airbagy apod.). Výhodou tohoto zařízení je především programování a úprava jednotek  bez nutnosti fyzického otevření či vypájení paměti. Vše lze udělat pohodlně přes kabel OBDII nebo napinování přímo jednotek.

Podporované ECU

• ABS/ESP (ATE) for X91/X95/X38/L70. EEPROM R/W, Change VIN, Change KM by OBDII - Clear Immo Code, Change VIN by OBDII
• EDC17 / SID305-310 / DCM3.4 / EMS31XX MILEAGE REPAIR by OBD II
• EDC15C3 (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
• EDC15C13 - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
• SIRIUS 31H - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
• SIRIUS 32[N] (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
• SIRIUS 34 (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
• SIRIUS 35 - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
• EMS3132 (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
• EMS3134 (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
• SID301 - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code, Clear IMPACT DETECTED, Read stored mileage
• SIM32 - Read/Write EEPROM, Read/Write FLASH from HD64F7055, Clear Immo Code
• SAFIR / SAFIR2 / SFR200 (35 / 55 pin connector) - Read TMS374 EEPROM, Clear Immo Code (car runs without immobilizer code)
• IAW 6R.20 - Read/Write TMS370 EEPROM
• IAW 6R.30 - Read TMS370 EEPROM, Clear Immo Code (car runs without immobilizer code)
• VALEO BII for ESPACE III - Read/Write (9)08AZ60 EEPROM, Read/Write mileage, Clear for Replacement, Read transponder data, Emergency Startup
• VALEO IMMOBILIZER for LAGUNA I Ph2 (1998-2000) - Read transponder data, Configure, Reset to VIRGIN
• VALEO IMMOBILIZER for LAGUNA I Ph1 / SAFRANE Ph1 (1995-1996) - Read PINCODE, Reset to VIRGIN
• INSTRUMENT CLUSTER for ESPACE III (1998-2002) - Reset odometer, Erase RF remote programming by instrument cluster connector
• SIEMENS IMMOBILIZER for ESPACE III Ph1 (1996-1998) - Read/Write 68HC05B16 EEPROM, read transponder data
• INSTRUMENT CLUSTER for ESPACE IV Ph1 ('03-'04) K-Line - Change language and units, Change VIN, KM, Read/Write EEPROM
• INSTRUMENT CLUSTER for ESPACE IV Ph2-Ph4 ('2005+) CAN - Change language and units, Change VIN, KM, Read/Write EEPROM
• SIEMENS UCH for MEGANE/SCENIC I Ph2 ('99-'02) - Read/Write 705B32 EEPROM, Read/Write configuration, Learn Keys, Reset to VIRGIN
• SIEMENS UCBIC for MEGANE/SCENIC I Ph1 ('96-'98) - Read/Write 68HC05B16 EEPROM, Read/Write configuration, Resest to VIRGIN
• LAGUNA II, ESPACE IV, VELSATIS Ph1/Ph2 - KeyCard Programming, Change VIN. Reset UCH to VIRGIN, Learn UCH
• MEGANE II, SCENIC II Ph1/Ph2 - Card/UCH/ECM/ESCL Learning, Change VIN, Reset UCH to VIRGIN, Config TPMS
• INSTRUMENT CLUSTER for SCENIC II ('04-'08) - Wake-Up by CAN-BUS for repair or to check mileage, Change language and units, Change VIN, KM, Read/Write EEPROM
• INSTRUMENT CLUSTER for MEGANE II ('03-'08) - Wake-Up by CAN-BUS for repair or to check mileage, Change language and units, Change VIN, KM, Read/Write EEPROM
• CLIO II Ph1 - Key Learning, Configuration, Reset BMT to VIRGIN
• CLIO II Ph2-5, KANGOO, TRAFIC, MASTER, VIVARO, MOVANO (-'07) - Read/Write EEPROM 93C66, Key Learning, Change VIN, Reset UCH to VIRGIN, Learn UCH
• KANGOO I, TRAFIC, MASTER, VIVARO, MOVANO ('07-) - Key Learning, Change VIN, Reset UCH to VIRGIN, Learn VIRGIN UCH
• KANGOO II (2007-2012) - Key Programming, Change VIN, Reset BCM to VIRGIN, Learn VIRGIN BCM
• MODUS / CLIO III ELECTRIC POWER ASSISTED STEERING (TRW DAE/PAS) - Clear Immo Code, Change VIN by OBDII, erase DF002 from 24C16 dump, repair CRC
• MEGANE/SCENIC III ELECTRIC POWER ASSISTED STEERING (NSK DAE/PAS) - Clear Immo Code, Change VIN by OBDII
• MEGANE/SCENIC IV (2016+) ELECTRIC POWER ASSISTED STEERING (NSK DAE/PAS) - Clear Immo Code, Change VIN by OBDII
• TWINGO III ELECTRIC POWER ASSISTED STEERING (JTEKT DAE/PAS) - Clear Immo Code, Change VIN by OBDII
• ESPACE V / TALISMAN / SAMSUNG SM6 ELECTRIC POWER ASSISTED STEERING (TRW EPS) - Clear Immo Code, Change VIN by OBDII
• CLIO IV ELECTRIC POWER ASSISTED STEERING (JTEKT DAE/PAS) - Clear Immo Code, Change VIN by OBDII
• LAGUNA III (2007-2015) - KeyCard Programming, Change VIN, Reset BCM to VIRGIN
• LAGUNA III / LATITUDE (2007-2015) - Learn BCM / ECM / ESCL in protected mode
• LATITUDE (2010+) - KeyCard Programming, Change VIN, Reset BCM to VIRGIN
• CLIO III / MODUS - Key Programming, Change VIN, Learn ECM in protected mode, Learn BCM, Reset BCM to VIRGIN
• CLIO III - Card/UCH/ECM/ESCL Learning, Change VIN, Reset UCH to VIRGIN
• CLIO IV (2012+)- Card Programming, Change VIN, Reset HFM to VIRGIN, Learn ECM / ESCL/HFM in protected mode (NEW FEATURES!)
• MASTER III (2010-2014) - Key Programming, Change VIN, Reset BCM to VIRGIN, Learn VIRGIN BCM
• TRAFIC II Ph3 (2010-2014) - Key Programming, Change VIN, Reset BCM to VIRGIN, Learn VIRGIN BCM
• WIND (2010-2013) - Key Programming, Change VIN, Reset BCM, Learn ECM, Learn BCM
• TWINGO II (2007-2013) - Key Programming, Change VIN, Reset BCM, Learn ECM, Learn BCM
• TWINGO (2001-2006), LOGAN (2004-2008), SANDERO I, THALIA, SYMBOL - Key Programming, Change VIN
• LOGAN, SANDERO, THALIA, SYMBOL (2008-2012), Duster (2010-2012) - Key Programming, Change VIN
• LOGAN, SANDERO, DOKKER, SYMBOL, DUSTER (2012+) - Key/ECM/BCM learning, Reset to VIRGIN, Read DataFlash, Change VIN (NEW FEATURES!)
• MEGANE III / SCENIC III (2009-2015) - Card Programming, Change VIN, Reset BCM to VIRGIN
• MEGANE III / SCENIC III (2009-2015) - Classical Key Programming, Change VIN, Reset BCM to VIRGIN
• MEGANE III / SCENIC III / FLUENCE (2009-2015) - Learn BCM / ECM / ESCL in protected mode
• KOLEOS (2008+) - KeyCard Programming, Change VIN, Reset BCM to VIRGIN, Learn ECM/BCM/ESCL
• EDC17 / MED17 TRICORE EEPROM DUMP CRC - Reset EEPROM dump to VIRGIN, repair block CRCs
• EDC17 / MED17 TRICORE TC1793 EEPROM DUMP CRC - Repair block CRCs
• EDC16 EEPROM DUMP CRC - Reset EEPROM dump to VIRGIN, repair block CRCs
• DELPHI DCM 3.4 EEPROM DUMP CRC - Reset EEPROM dump to VIRGIN, Change KM, repair block CRCs
• DECRYPT ISK FROM ECM DUMP - Get ISK from ECM for VIRGING BCM learning when original BCM is missing (NEW FEATURES!)
• SID305/306/307/308/309 TRICORE DFLASH DUMP CRC - Search/change KM, repair block CRCs
• MEGANE III / SCENIC III / FLUENCE / LATITUDE AIRBAG (CONTINENTAL) - Erase CRASH DATA by OBDII / direct connection
• LAGUNA III AIRBAG (AUTOLIV RC5) - Erase CRASH DATA by OBDII / direct connection
• TWINGO II (X44) / KANGOO II (X61) AIRBAG (CONTINENTAL) - Erase CRASH DATA by OBDII / direct connection
• MASTER III / MOVANO-B / CLIO III Ph2 / MODUS Ph2 AIRBAG (AUTOLIV) - Erase CRASH DATA by OBDII / direct connectionAIRBAG MODULE WITH SPC560 MCU (CONTINENTAL) - Erase CRASH DATA by OBDII / direct connection
• MEGANE II / SCENIC II AIRBAG (AUTOLIV ACU4) - Erase CRASH DATA by OBDII / direct connection
• CLIO II X65 AIRBAG (BOSCH AB8) - Erase CRASH DATA, Read/Write MCU internal EEPROM by OBDII / direct connection
• CLIO III Ph1 / MODUS Ph1 AIRBAG (BOSCH AB9.X) - Erase CRASH DATA, Erase fault codes by OBDII / direct connection
• ESPACE III AIRBAG (SIEMENS) - Erase CRASH DATA, Read/Write MCU internal EEPROM by OBDII / direct connection
• LOGAN X90 / DUSTER H79 AIRBAG (TEMIC-CONTINENTAL) - Erase CRASH DATA, Read EEPROM by OBDII / direct connection
• LOGAN X90 AIRBAG (BOSCH AB8.X with yellow connector) - Erase CRASH DATA, Read/Write MCU internal EEPROM by OBDII / direct connection
• KADJAR / TALISMAN AIRBAG (AUTOLIV AC7 with MCU XC2336) - Erase CRASH DATA by OBDII / direct connection
• CLIO IV Ph2 / CAPTUR Ph2 AIRBAG (CONTINENTAL 985100475R, 985101180R, 985103419R with R7F7010133) - Erase CRASH DATA by OBDII / direct connection

Základní funkce

• Programování ECU

Podporované jazyky

• Angličtina

Podporované komunikační protokoly

• KLine
• CAN

Podpora operačních systémů PC

• Windows XP 32 bit
• Windows Vista 32/64 bit
• Windows 7 32/64 bit
• Windows 8, 8.1 32/64 bit
• Windows 10 32/64 bit
• Windosw 11

Obsah balení

• Programátor
• Uživatelský software
• USB propojovací kabel
• Přenosný plastový kufřík
